About MIXPAC™ Statomix™ Static Mixing Nozzles for Machine Dispensing
Static mixing nozzles are available in two inside-diameter sizes of bell-mouth:
- MIXPAC Statomix ME type – Blue 15.87 mm
- MIXPAC Statomix MS type – Yellow 16.69 mm

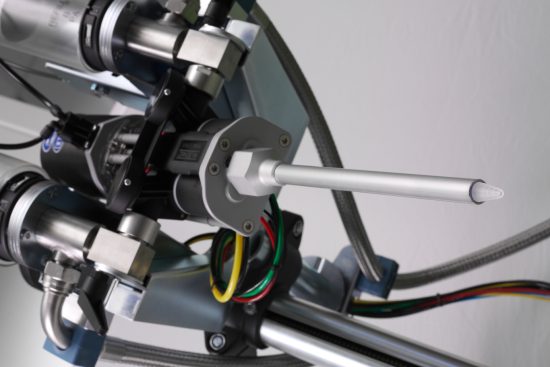

The bell-mouth is the material entry end of the nozzle and the part which fits over the meter and mix exit manifold.
Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housing are polypropylene. Luer-lock adapters are also available for fine bead applications using luer-lock dispensing tips.
MIXPAC Statomix ME Type
- Blue helical elements
- Bell mouth with 15.87mm ID
| Part number | Number of elements | ID (mm) | OD (mm) | Total length (mm) | Tip Style |
|---|---|---|---|---|---|
| ME 08-32T | 32 | 8 | 12 | 287 | Stepped tip |
| ME 10-24T | 24 | 10 | 14 | 276 | Stepped tip |
| ME 10-32T | 32 | 10 | 14 | 352 | Stepped tip |
| ME 13-24T | 24 | 13 | 17 | 293 | Stepped tip |

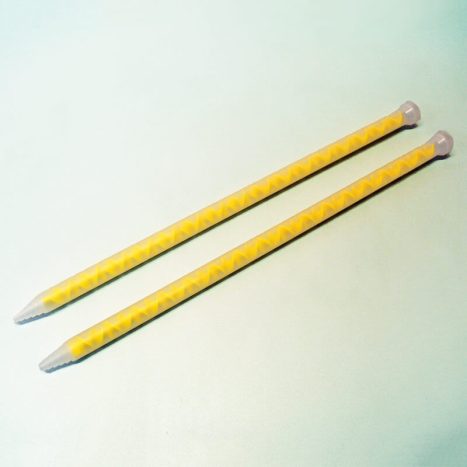

MIXPAC Statomix MS Type
- Yellow helical elements
- Bell mouth with 16.69mm ID
| Part number | No. of elements | ID (mm) | OD (mm) | Length (mm) | Tip Style |
|---|---|---|---|---|---|
| MS 08-24T | 24 | 8.0 | 12.0 | 223 | Stepped tip |
| MS 08-32T | 32 | 8.0 | 12.2 | 287 | Stepped tip |
| MS 10-18T | 18 | 10.0 | 14.0 | 214 | Stepped tip |
| MS 10-24T | 24 | 10.0 | 14.0 | 276 | Stepped tip |
| MS 13-18G | 18 | 12.8 | 17.0 | 223 | Threaded tip |
| MS 13-24T | 24 | 13 | 17.0 | 293 | Stepped tip |
Accessories
| Part number | Description | |
|---|---|---|
| Nozzle retaining nuts | ||
| IDMUM08-PA | Nut, beige for I.D. 5-8 mm | |
| IDMUM10-PA | Nut, beige for I.D. 10 mm | |
| IDMUM13-PA | Nut, beige for I.D. 13 mm | |
| IDMUM10-14-PA | Nut, grey for I.D. up to 10 mm | |
| IDMUM13-14-PA | Nut, grey for I.D. 13 mm only | |
| Luer-lock adapters for dispensing needles and tips | ||
MXPLA05-00 (white); formerly IDMLA05-00 |
For 5 mm mixers | |
| MXPLA06-08 (grey); formerly IDMLA06-08 |
For 6 mm & 8 mm mixers | |
| MXPLA10-00 (black); formerly IDMLA10-00 |
10 mm mixers | |
| Ribbon spreaders | ||
| Ribbon tip spreader | I.D. mm | Ribbon tip mixer |
| IDMBSD10-25 | 25 | IDMMC10-20A |
| IDMBSD10-40 | 40 | IDMMC10-24-A |
| Also available are support washers, shrouds, stainless steel and fiberglass mixers, rotary-static nozzles | ||
Ordering Information
| Part number | Description |
|---|---|
| MXPME08-32T | MIXPAC machine mixer round, 8mm x 32, blue POM, white PP, shroud with integral nut type, stepped tip |
| MXPME10-24T | MIXPAC machine mixer round, 10mm x 24, blue POM, white PP, shroud with integral nut type, stepped tip |
| MXPME10-32T | MIXPAC machine mixer round, 10mm x 32, blue POM, white PP, shroud with integral nut type, stepped tip |
| MXPME13-24T | MIXPAC machine mixer round, 13mm x 24, blue POM, white PP, shroud with integral nut type, stepped tip |
| MXPMS08-24T | MIXPAC machine mixer round, 8mm x 24, yellow POM, white PP, shroud with integral nut type, stepped tip |
| MXPMS08-32T | MIXPAC machine mixer round, 8mm x 32, yellow POM, white PP, shroud with integral nut type, stepped tip |
| MXPMS10-18T | MIXPAC machine mixer round, 10mm x 18, yellow POM, white PP, shroud with integral nut type, stepped tip |
| MXPMS10-24T | MIXPAC machine mixer round, 10mm x 24, yellow POM, white PP, shroud with integral nut type, stepped tip |
| MXPMS13-18G | MIXPAC machine mixer round, 13mm x 18, yellow POM, white PP, shroud with integral nut type, threaded tip |
| MXPMS13-24T | MIXPAC machine mixer round, 13mm x 24, yellow POM, white PP, shroud with integral nut type, stepped tip |
|
|
|
