About MIXPAC™ MCH & MCHX, MCQ & MGQ Mixers

MIXPAC MCH, MCHX and MIXPAC MCQ & MGQ mixers are used with MIXPAC C-System 200ml and 400/490ml two-part cartridges, and are compatible with many other systems. They have a bell mouth fitting for mounting on the cartridge. The mixer’s first element automatically aligns itself with the dividing wall of the MIXPAC cartridge, separating Part A and Part B, preventing curing at the interface of the cartridge.

They are available in round/helical and square QUADRO versions. There are versions with stepped outlet tips, chemical anchor tips and high flow tips.

MIXPAC MCH, MCHX, MCQ and MGQ static mixing nozzles are used to dispense two-part adhesives and materials such as epoxy, polyurethane, acrylic, and MMA methacrylate. MGQ mixers are also used in construction applications.

These mixers were formerly sold under the “Sulzer Mixpac” brand name.

Features & Benefits

  • Available ex stock for next day delivery
  • Premium Swiss quality

MCH Nozzles

  • Attachment type: bell mouth
  • Design: round with helical elements
  • Colour of elements: white
  • Cartridge sizes and mix ratios:
    • 200ml cartridges – 1:1, 2:1, 4:1
    • 400/490ml cartridges – 1:1, 2:1

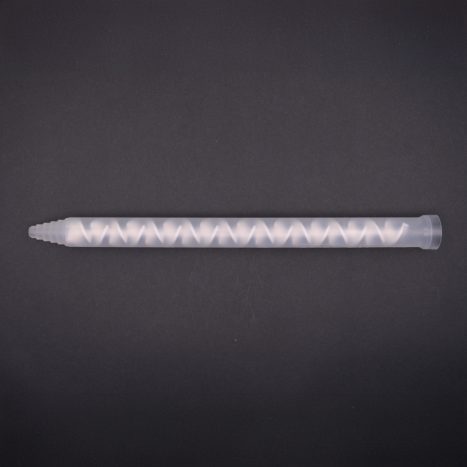

MIXPAC MCH 13-18T mixing nozzle

Part number No. of elements ID (mm) Length (mm) Tip Style
MCH 08-18T 18 8 178 Stepped tip
MCH 10-18T 18 10 215 Stepped tip
MCH 10-24T 24 10 277 Stepped tip
MCH 13-18T 18 13 232 Stepped tip

MCH mixers are available to buy online at  Available at Intertronics.shop

MCHX Nozzles

  • Attachment type: bell mouth
  • Design: round with helical elements
  • Colour of elements: orange
  • Cartridge sizes and mix ratios:
    • 200ml cartridges – 10:1
    • 400/490ml cartridges – 4:1, 10:1

MIXPAC MCHX 10-24T mixer

Part number No. of elements ID (mm) Length (mm) Tip Style
MCHX 08-24T 24 8 231 Stepped tip
MCHX 10-18T 18 10 216 Stepped tip
MCHX 10-24T 24 10 276 Stepped tip

MCHX mixers are available to buy online at  Available at Intertronics.shop

MCQ Nozzles

  • Attachment type: bell mouth
  • Design: square QUADRO
  • Colour of elements: green
  • Cartridge sizes and mix ratios:
    • 200ml cartridges – 1:1, 2:1, 4:1
    • 400/490ml cartridges – 1:1, 2:1

MIXPAC MCQ 08-32T mixer

Part number No. of elements ID (mm) Length (mm) Tip Style
MCQ 07-24T 24 7.5 130 Stepped tip
MCQ 08-24T 24 8.7 147 Stepped tip
MCQ 10-24T-01 24 10.7 172 Stepped tip

MCQ mixers are available to buy online at  Available at Intertronics.shop

MGQ Nozzles

  • Attachment type: bell mouth with moulded thread
  • Design: square QUADRO
  • Colour of elements: green
  • Cartridge sizes and mix ratios:
    • 200ml cartridges – 1:1, 2:1, 4:1, 10:1
    • 400/490ml cartridges – 1:1, 2:1, 4:1, 10:1
    • 150ml cartridges (construction) – 10:1
    • 310ml cartridges (construction) – 10:1
    • 380ml cartridges (construction) – 10:1
Part number No. of elements ID (mm) Length (mm) Tip Style
MGQ 08-20T 20 8.7 142 Stepped tip
MGQ 08-24T 24 8.7 161 Stepped tip
MGQ 10-19A 19 10.7 254 Chemical anchor
MGQ 10-24D 24 10.7 187 Straight Tip
MGQ 14-20 20 14.0 238 Threaded tip
KMGQ 14-20E 20 14.0 High flow straight tip

MGQ mixers are available to buy online at  Available at Intertronics.shop

All Downloads

Filename Size Download
MIXPAC C System Mixers Catalogue 0.49MB Download

Ordering Information

Part number Description
MXPMCH08-18T MIXPAC static mixer round, 1:1/2:1, 8mm x 18, white PP, retaining nut type, stepped tip
MXPMCH10-18T MIXPAC static mixer round, 1:1/2:1, 10mm x 18, white PP, retaining nut type, stepped tip
MXPMCH10-24T MIXPAC static mixer round, 1:1/2:1, 10mm x 24, white PP, retaining nut type, stepped tip
MXPMCH13-18T MIXPAC static mixer round, 1:1/2:1, 13mm x 18, white PP, retaining nut type, stepped tip
MXPMCHX08-24T MIXPAC static mixer round, 4:1/10:1, 8mm x 24, orange PP, integral nut type, stepped tip
MXPMCHX10-18T MIXPAC static mixer round, 4:1/10:1, 10mm x 18, orange PP, integral nut type, stepped tip
MXPMCHX10-24T MIXPAC static mixer round, 4:1/10:1, 10mm x 24, orange PP, integral nut type, stepped tip
MXPMCQ07-24T MIXPAC static mixer quadro, 1:1/2:1, 7mm x 24, green PP, retaining nut type, stepped tip
MXPMCQ08-24T MIXPAC static mixer quadro, 1:1/2:1, 8mm x 24, green PP, retaining nut type, stepped tip
MXPMCQ10-24T-01 MIXPAC static mixer quadro, 1:1/2:1, 10mm x 24, green PP, retaining nut type, stepped tip
Part number Description
MXPMGQ08-20T MIXPAC static mixer quadro, 1:1/2:1, 8mm x 20, green PP, integral nut type, stepped tip
MXPMGQ08-24T MIXPAC static mixer quadro, 1:1/2:1, 8mm x 24, green PP, integral nut type, stepped tip
MXPMGQ10-19A MIXPAC static mixer quadro, 1:1/2:1, 10mm x 19, green PP, integral nut type, anchoring tip
MXPMGQ10-24D MIXPAC static mixer quadro, 1:1/2:1, 10mm x 24, green PP, integral nut type, straight tip
MXPMGQ14-20 MIXPAC static mixer quadro, 1:1/2:1, 14mm x 20, green PP, integral nut type, high flow tip
MXPKMGQ14-20E MIXPAC static mixer quadro, 1:1/2:1, 14mm x 20, green PP, integral nut type, extension tip
