MIXPAC™ MAH, MAQ Mixers

How to Buy
MIXPAC MAQ 05-24L mixer
1 2

About MIXPAC™ MAH, MAQ Mixers

MIXPAC MAH and MIXPAC MAQ mixers are used with MIXPAC A-System 50ml (and 75ml with 1:1 ratio) two-part cartridges, and are compatible with many other systems. They have a simple twist lock bayonet fitting for mounting on the cartridge. The mixer’s first element automatically aligns itself with the dividing wall of the MIXPAC cartridge, separating Part A and Part B, preventing curing at the interface of the cartridge.

They are available in round/helical and square QUADRO versions. There are versions with stepped outlet tips and luer slip outlet tips.

MIXPAC MAH and MAQ static mixing nozzles are used to dispense two-part adhesives and materials such as epoxy, polyurethane, acrylic, and MMA methacrylate.

These mixers were formerly sold under the “Sulzer Mixpac” brand name.

Features & Benefits

  • Available ex stock for next day delivery
  • Compatible with most 50ml two-part cartridge-based systems, and 75ml cartridges with 1:1 mix ratio
  • Premium Swiss quality

MIXPAC MAH Mixers

  • Attachment type: bayonet
  • Design: round with helical elements
  • Colour of elements: white

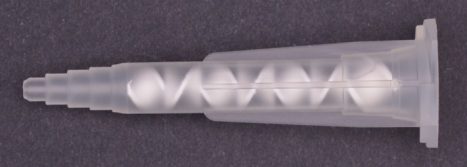

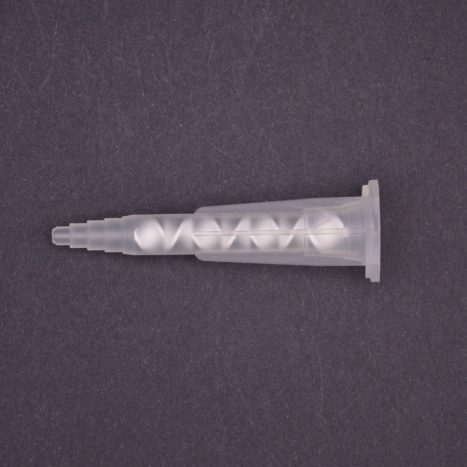

MIXPAC MAH 05-07T mixing nozzle

Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MAH 05-07T 7 5.4 56 Stepped tip 1:1/2:1
MAH 05-17T 17 5.4 104 Stepped tip 1:1/2:1
MAH 06-17T 17 6.3 128 Stepped tip 1:1/2:1
MAH 06-21L 21 6.3 152 Luer slip tip 1:1/2:1
MAH 06-21T 21 6.3 153 Stepped tip 1:1/2:1
MAH 0517-0413T 30 5.4 – 4.0 149 Stepped tip 1:1/2:1
MAH 0517-0413T is a hybrid mixer made by fusing an 05-17 mixer and an 04-13 mixer. The lower half of the mixer has a smaller ID than the upper half.

MAH mixers are available to buy online at  Available at Intertronics.shop

MIXPAC MAQ Mixers

  • Attachment type: bayonet
  • Design: QUADRO square
  • Colour of elements: green

MIXPAC MAQ 05-24L mixer

Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MAQ 05-16L 16 5.3 83 Luer slip tip 1:1/2:1/4:1/10:1
MAQ 05-24L 24 5.3 115 Luer slip tip 1:1/2:1/4:1/10:1

MAQ Mixers are available to buy online at  Available at Intertronics.shop

All Downloads

Filename Size Download
MIXPAC A System Mixers Catalogue 0.52MB Download

Ordering Information

Part number Description
MXPMAH05-07T MIXPAC static mixer round, 1:1/2:1, 5mm x 7, white PP, bayonet type, stepped tip
MXPMAH05-17T MIXPAC static mixer round, 1:1/2:1, 5mm x 17, white PP, bayonet type, stepped tip
MXPMAH0517-0413T MIXPAC static mixer round, 1:1/2:1, 5mm x 17 and 4mm x 13, white PP, bayonet type, stepped tip
MXPMAH06-17T MIXPAC static mixer round, 1:1/2:1, 6mm x 17, white PP, bayonet type, stepped tip
MXPMAH06-21L MIXPAC static mixer round, 1:1/2:1, 6mm x 21, white PP, bayonet type, luer tip
MXPMAH06-21T MIXPAC static mixer, round, 1:1/2:1, 6mm x 21, white PP, bayonet type, stepped tip
MXPMAQ05-16L MIXPAC static mixer quadro, 1:1/2:1/4:1/10:1, 5mm x 16, green PP, bayonet type, luer tip
MXPMAQ05-24L MIXPAC static mixer quadro, 1:1/2:1/4:1/10:1, 5mm x 24, green PP, bayonet type, luer tip



Let's start by talking about your application
orange_phone01865 842842 orange_email  orders@intertronics.co.uk

  • If you’re in the UK, knowing your postcode would help us get in touch even more quickly. If you’re outside the UK, please indicate your country.
  • Any information that you submit using this form will be processed according to our privacy policy.

  • This field is for validation purposes and should be left unchanged.









  • Last updated: August 2024
  • Version: 1.0

Statements, technical information and recommendations contained herein are based on tests we believe to be reliable but they are not to be construed in any manner as warrantees expressed or implied. The user shall determine the suitability of the product for his intended use and the user assumes all risk and liability whatsoever in connection therewith.
