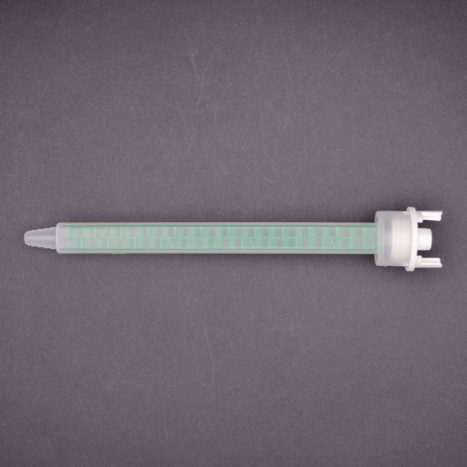

MIXPAC MFQ 08-24T mixer
MIXPAC static mixer helical
MIXPAC static mixer Quadro
1 3

About MIXPAC™ MFH & MFHX, MFQ & MFQX Mixers

MIXPAC MFH, MFHX and MIXPAC MFQ & MFQX mixers are used with MIXPAC F-System 200ml and 400/490ml two-part cartridges, and are compatible with many other systems. They have an interlock with separate inlets fitting for mounting on the cartridge. The mixer’s first element automatically aligns itself with the dividing wall of the MIXPAC cartridge, separating Part A and Part B, preventing curing at the interface of the cartridge.

They are available in round/helical and square QUADRO versions. There are versions with stepped outlet tips and straight outlet tips.

MIXPAC MFH, MFHX, MFQ and MFQX static mixing nozzles are used to dispense two-part adhesives and materials such as epoxy, polyurethane, acrylic, and MMA methacrylate.

These mixers were formerly sold under the “Sulzer Mixpac” brand name.

Features & Benefits

  • Available ex stock for next day delivery
  • Premium Swiss quality

MFH Nozzles

  • Attachment type: interlock with separate inlets
  • Design: round with helical elements
  • Colour of elements: white

MIXPAC MFH 06-24T mixing nozzle

Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MFH 06-24T 24 6 194 Stepped tip 1:1/2:1
MFH 06-32T 32 6 245 Stepped tip 1:1/2:1
MFH 08-18T 18 8 187 Stepped tip 1:1/2:1
MFH 08-24T 24 8 234 Stepped tip 1:1/2:1
MFH 08-32T 32 8 297 Stepped tip 1:1/2:1
MFH 10-24T 24 10 283 Stepped tip 1:1/2:1

MFH mixers are available to buy online at  Available at Intertronics.shop

MFHX Nozzles

  • Attachment type: interlock with separate inlets
  • Design: round with helical elements
  • Colour of elements: orange

MIXPAC MFHX 08-18T mixing nozzle

Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MFHX 06-18T 18 6 156 Stepped tip 4:1/10:1
MFHX 08-18T 18 8 187 Stepped tip 4:1/10:1
MFHX 10-18T 18 10 224 Stepped tip 4:1/10:1
MFHX 10-24T 24 10 283 Stepped tip 4:1/10:1

MFHX mixers are available to buy online at  Available at Intertronics.shop

MFQ Nozzles

  • Attachment type: interlock with separate inlets
  • Design: square QUADRO
  • Colour of elements: green

MIXPAC static mixer Quadro

Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MFQ 08-24D 24 8.7 Straight tip 1:1/2:1
MFQ 08-24T 24 8.7 155 Stepped tip 1:1/2:1
MFQ 10-24T 24 10.7 181 Stepped tip 1:1/2:1

MFQ mixers are available to buy online at  Available at Intertronics.shop

MFQX Nozzles

  • Attachment type: interlock with separate inlets
  • Design: square QUADRO
  • Colour of elements: green with orange attachment end
Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MFQ 08-24T 24 8.7 155 Stepped tip 4:1/10:1
MFQ 10-24T 24 10.7 181 Stepped tip 4:1/10:1

MFQX mixers are available to buy online at  Available at Intertronics.shop

All Downloads

Filename Size Download
MIXPAC F System Mixers Catalogue 0.59MB Download

Ordering Information

Part number Description
MXPMFH06-24T MIXPAC static mixer round, 1:1/2:1, 6mm x 24, white PP, interlock type, stepped tip
MXPMFH06-32T MIXPAC static mixer round, 1:1/2:1, 6mm x 32, white PP, interlock type, stepped tip
MXPMFH08-18T MIXPAC static mixer round, 1:1/2:1, 8mm x 18, white PP, interlock type, stepped tip
MXPMFH08-24T MIXPAC static mixer round, 1:1/2:1, 8mm x 24, white PP, interlock type, stepped tip
MXPMFH08-32T MIXPAC static mixer round, 1:1/2:1, 8mm x 32, white PP, interlock type, stepped tip
MXPMFH10-24T MIXPAC static mixer round, 1:1/2:1, 10mm x 24, white PP, interlock type, stepped tip
MXPMFHX06-18T MIXPAC static mixer round, 4:1/10:1, 6mm x 18, orange PP, interlock type, stepped tip
MXPMFHX08-18T MIXPAC static mixer round, 4:1/10:1, 8mm x 18, orange PP, interlock type, stepped tip
MXPMFHX10-18T MIXPAC static mixer round, 4:1/10:1, 10mm x 18, orange PP, interlock type, stepped tip
MXPMFHX10-24T MIXPAC static mixer round, 4:1/10:1, 10mm x 24, orange PP, interlock type, stepped tip
MXPMFQ08-24D MIXPAC static mixer quadro, 1:1/2:1, 8mm x 24, green PP, interlock type, straight tip
MXPMFQ08-24T MIXPAC static mixer quadro, 1:1/2:1, 8mm x 24, green PP, interlock type, stepped tip
MXPMFQ10-24T MIXPAC static mixer quadro, 1:1/2:1, 10mm x 24, green PP, interlock type, stepped tip
MXPMFQX08-24T MIXPAC static mixer quadro, 4:1/10:1, 8mm x 24, green PP, interlock type, stepped tip
MXPMFQX10-24T MIXPAC static mixer quadro, 4:1/10:1, 10mm x 24, green PP, interlock type, stepped tip
