MIXPAC™ MBH & MBHX, MBQ & MBQX Mixers

How to Buy
MIXPAC MBQ 05-24L mixer
MIXPAC MBHX 04-16D mixing nozzle
MIXPAC MBH 06-20T mixer
MIXPAC MBQX 05-16L mixing nozzle
1 5

About MIXPAC™ MBH & MBHX, MBQ & MBQX Mixers

The MIXPAC MBH and MIXPAC MBQ series of cartridge static mixers were developed for MIXPAC B-System two-part cartridges. They have a unique “interlock with separate inlets” interface with the cartridge. The poka-yoke twist-lock mechanism provides A/B alignment, and the separated outlets between cartridge and static mixer eliminates the possibility of cross contamination and avoids plugged cartridges. These mixing nozzles are also compatible with most 50ml two-part cartridge systems, and 25ml two-part cartridges with a 1:1 mix ratio.

They are available in round/helical and square QUADRO versions. There are versions with stepped outlet tip, luer slip outlet tips and straight outlet tips.

MIXPAC MBH/MBHX and MBQ/MBQX static mixing nozzles are used to dispense two-part adhesives and materials such as epoxy, polyurethane, acrylic, and MMA methacrylate.

These mixers were formerly sold under the “Sulzer Mixpac” brand name.

Features & Benefits

  • Available ex stock for next day delivery
  • Premium Swiss quality

MIXPAC MBH Mixers

  • Attachment type: interlock with separate inlets
  • Design: round with helical elements
  • Colour of elements: white

MIXPAC MBH 06-20T mixer

Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MBH 05-12D 12 5.4 82.5 Straight tip 1:1/2:1
MBH 05-16T 16 5.4 111.8 Stepped tip 1:1/2:1
MBH 05-20T 20 5.4 132.8 Stepped tip 1:1/2:1
MBH 06-16T 16 6.5 131 Stepped tip 1:1/2:1
MBH 06-20T 20 6.5 157 Stepped tip 1:1/2:1

MBH mixers are available to buy online at  Available at Intertronics.shop

MIXPAC MBHX Mixers

  • Attachment type: interlock with separate inlets
  • Design: round with helical elements
  • Colour of elements: red

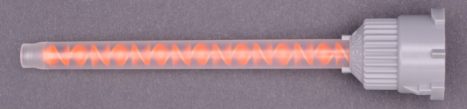

MIXPAC MBHX 04-16D mixing nozzle

Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MBHX 03-16S 16 3.2 77 Tapered tip 4:1/10:1
MBHX 04-16D 16 4.2 86 Straight tip 4:1/10:1
MBHX 04-16S 16 4.2 96 Tapered tip 4:1/10:1
MBHX 05-16T 16 5.4 111 Stepped tip 4:1/10:1
MBHX 06-20T 20 6.5 157 Stepped tip 4:1/10:1

MBHX mixers are available to buy online at  Available at Intertronics.shop

MIXPAC MBQ Mixers

  • Attachment type: interlock with separate inlets
  • Design: QUADRO square
  • Colour of elements: green

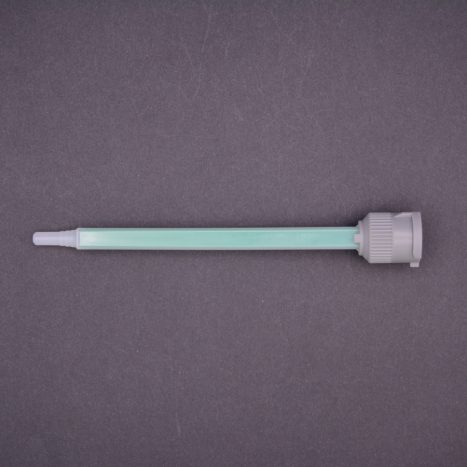

MIXPAC MBQ 05-24L mixer

Part number No. of elements ID (mm) Length (mm) Tip Style Ratio
MBQ 05-16L 16 5.3 83 Luer slip tip 1:1/2:1
MBQ 05-24L 24 5.3 115 Luer slip tip 1:1/2:1

MBQ mixers are available to buy online at  Available at Intertronics.shop

MIXPAC MBQX Mixers

  • Attachment type: interlock with separate inlets
  • Design: QUADRO square
  • Colour of elements: red

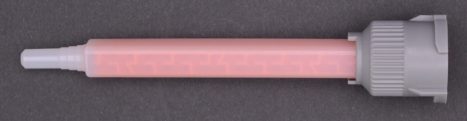

MIXPAC MBQX 05-16L mixing nozzle

Part number No. of elements ID (mm) Length (mm) Ratio Outlet tip style
MBQX 05-16L 16 5.3 90.7 4:1/10:1 luer slip
MBQX 05-24L 24 5.3 122 4:1/10:1 luer slip

MBQX mixers are available to buy online at  Available at Intertronics.shop

All Downloads

Filename Size Download
MIXPAC B System Mixers Catalogue 0.60MB Download

Ordering Information

Part number Description
MXPMBH05-12D MIXPAC static mixer round, 1:1/2:1, 5mm x 12, white PP, interlock type, straight tip
MXPMBH05-16T MIXPAC static mixer round, 1:1/2:1, 5mm x 16, white PP, interlock type, stepped tip
MXPMBH05-20T MIXPAC static mixer round, 1:1/2:1, 5mm x 20, white PP, interlock type, stepped tip
MXPMBH06-16T MIXPAC static mixer round, 1:1/2:1, 6mm x 16, white PP, interlock type, stepped tip
MXPMBH06-20T MIXPAC static mixer round, 1:1/2:1, 6mm x 20, white PP, interlock type, stepped tip
MXPMBHX03-16S MIXPAC static mixer round, 4:1/10:1, 3mm x 16, orange PP, interlock type, tapered tip
MXPMBHX04-16D MIXPAC static mixer round, 4:1/10:1, 4mm x 16, orange PP, interlock type, straight tip
MXPMBHX04-16S MIXPAC static mixer round, 4:1/10:1, 4mm x 16, orange PP, interlock type, tapered tip
MXPMBHX05-16T MIXPAC static mixer round, 4:1/10:1, 5mm x 16, orange PP, interlock type, stepped tip
MXPMBHX06-20T MIXPAC static mixer round, 4:1/10:1, 6mm x 20, orange PP, interlock type, stepped tip
MXPMBQ05-16L MIXPAC static mixer quadro, 1:1/2:1, 5mm x 16, green PP, interlock type, luer tip
MXPMBQ05-24L MIXPAC static mixer quadro, 1:1/2:1, 5mm x 24, green PP, interlock type, luer tip
MXPMBQX05-16L MIXPAC static mixer quadro, 4:1/10:1, 5mm x 16, orange PP, interlock type, luer tip
MXPMBQX05-24L MIXPAC static mixer quadro, 4:1/10:1, 5mm x 24, orange PP, interlock type, luer tip



Let's start by talking about your application
orange_phone01865 842842 orange_email  orders@intertronics.co.uk

  • If you’re in the UK, knowing your postcode would help us get in touch even more quickly. If you’re outside the UK, please indicate your country.
  • Any information that you submit using this form will be processed according to our privacy policy.

  • This field is for validation purposes and should be left unchanged.









  • Last updated: August 2024
  • Version: 1.0

Statements, technical information and recommendations contained herein are based on tests we believe to be reliable but they are not to be construed in any manner as warrantees expressed or implied. The user shall determine the suitability of the product for his intended use and the user assumes all risk and liability whatsoever in connection therewith.
